Product function

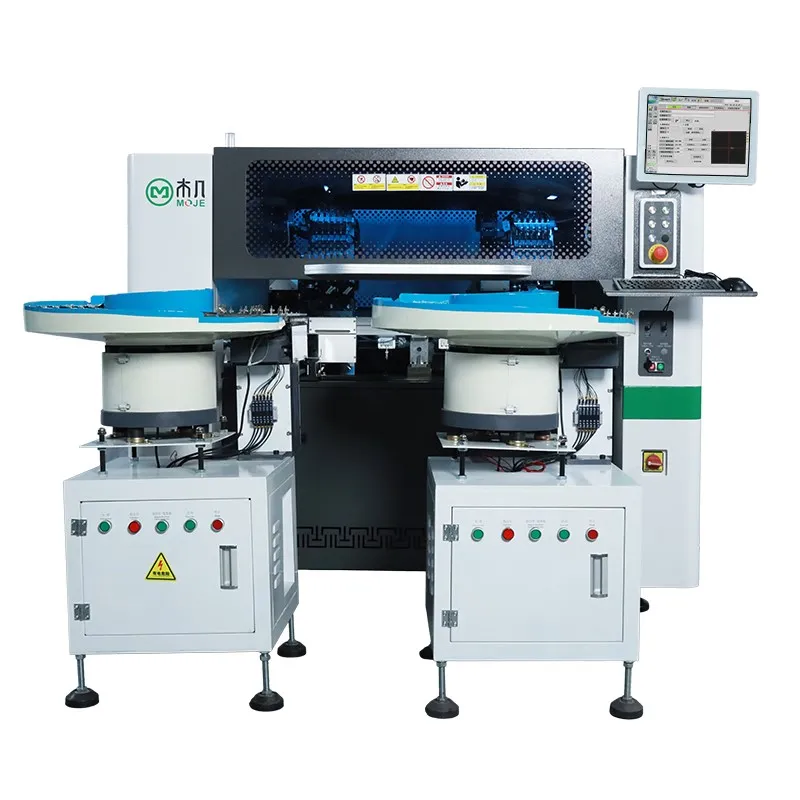

The FTM202-L SMT machine for LED tube light is a high-speed, high-precision pick-and-place machine designed to meet the rigorous demands of modern LED lighting production. With its dual-head, dual-working-area configuration, it achieves the fastest placement speed in the industry, significantly enhancing production efficiency. The machine's high-precision compensation system ensures accuracy during placement, meeting the demands of lenses in various specifications, particularly for the SMT machine for LED tube light.
Equipped with two high-speed placement heads, each featuring six nozzles, the FTM202-L SMT machine for LED tube light efficiently handles lenses with diameters ranging from 9mm to 16mm. The placement head structure and vision system have been optimized specifically for the placement processes of different lens types, ensuring compatibility and efficiency with the SMT machine for LED tube light. Additionally, it includes two high-performance six-channel vibratory feeders, ensuring more efficient and stable feeding with broader compatibility.
The machine excels in placing round, square, and irregularly shaped lenses and demonstrates excellent performance in the fields of LED lenses and 4C auxiliary materials, making it an ideal solution for manufacturers looking to elevate their production capabilities with a focus on the SMT machine for LED tube light. Whether you're tackling intricate designs or high-volume orders, the FTM202-L SMT machine for LED tube light empowers you to achieve smarter, faster, and more reliable production outcomes in the electronics industry, with a core emphasis on the SMT machine for LED tube light.
Technical Parameters
|
Technical specifications |
|
|
Positioning method |
Flying vision + stage vision |
|
Number of spindles |
2 arms *6 nozzles (spacing 20mm) |
|
Mounting speed |
34000CPH (do not sweep blue light ) |
|
Mounting accuracy |
±0.07mm |
|
PCB Component range |
Various sizes of lenses and etc. |
|
PCB size |
Minimum:length(50mm)*width(50mm) |
|
Maximum:standard : length(1200mm)*width(400mm); H:0.5~6mm |
|
|
Feeder base |
Supporting two vibrating disks |
|
Power/air pressure |
220V±10%50Hz/0.5~0.7Mpa |
|
Rated power |
3.5KW |
|
Machine weight |
1800Kg |
|
Overall dimensions |
1310(L)*1765(W)*1310(H) adding ground anchor (H):1420mm |
Advantage description
Accommodates Long Materials: Capable of supporting the precise placement of materials extending up to 1200mm in length, catering to a wide range of component sizes.
Versatile Handling: Exhibits high flexibility, adept at managing multiple lens specifications concurrently, ensuring adaptability across diverse production needs.
User-Centric Design: Equipped with an intuitive interface that is user-friendly, simplifying operations and significantly enhancing the overall user experience.
Reliable Performance: Delivers highly stable performance coupled with exceptional placement accuracy, ensuring consistent quality in output.
Applicable scene
LED lens,3C consumer electronics
