Product function

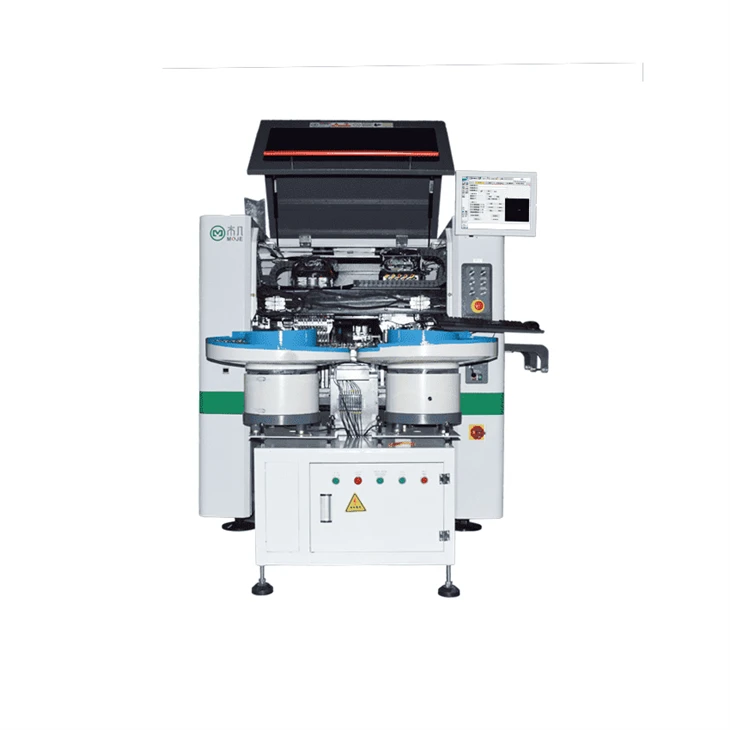

The FTH502-L is a high-speed pick-and-place machine optimized for lens placement in TV backlight applications. With a maximum speed of 72,000 CPH, it delivers exceptional accuracy for complex components. Its FPGA-based multi-view CMOS imaging system and synchronized multi-sensor capture facilitate real-time data acquisition and precise visual recognition, ensuring efficient handling of both standard and irregular components.
Technical Parameters
|
Applicable scene |
SMT lighting and3C accessories |
|
Technical specifications |
|
|
Positioning method |
Stage vision (optional) + flying vision |
|
Number of spindles |
2 arms *10 nozzles(spacing: 16mm) |
|
Mounting speed |
60000CPH |
|
Mounting accuracy |
±0.05mm |
|
Corresponding components |
Lenses of various sizes H:0.5~9mm |
|
PCB size |
Dual track:MAX500mm(L)×300mm(W) H：0.5~9mm |
|
Power/air pressure |
AC380V/50HZ;0.5-0.7Mpa |
|
Rated power |
4.5KW |
|
Machine weight |
1800kg |
|
Overall dimensions |
2800(L)*1450(W)*1688(H)mm, |
Advantage description
Dual-Arm Dual-Drive System: Provides stable and precise operation.
Silent Linear Motor Drive: Minimizes noise and vibration for an improved work environment.
High-Speed Vision System: Advanced flying-camera technology enhances complex placement capabilities.
User-Friendly Interface: Streamlined operation and quick training for operators.
